Short Description:

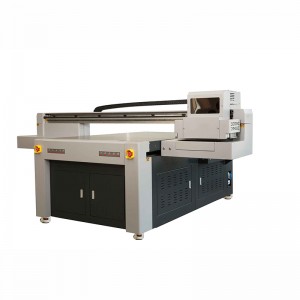

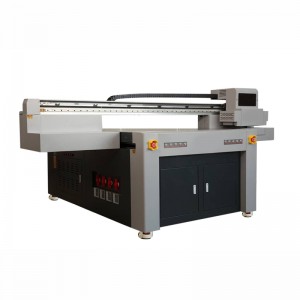

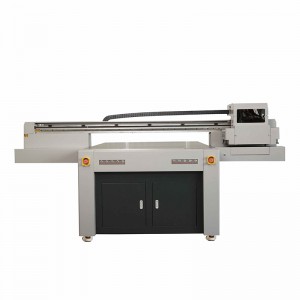

UniPrint UV1316 is a mid-format flatbed printer. The printer uses a high-grade print head. It enables you to transfer desired design patterns onto print media quickly and precisely. This mid-format printer supports maximum print size up to 1300mmx1600mm. You can use it to print any flat objects made out of aluminum, ceramic, glass, leather, and more.

Product Detail

Product Tags


Machine Parameter

Model UV1316
Nozzle Configuration Epson DX7 or Epson i3200
Max print size 1300mm*1600mm
Print height 10cm or can be customized
Print speed DX7 Production 4m2/H;  High quality 3.5m2/H
Print speed i3200 Production 10m2/H;  High quality 8m2/H
Print resolution  720*360dpi 720*720dpi 720*1080dpi 720*1440dpi
Print material Type: Acrylic, Aluminum, Ceramic, Foam board, Metal, Glass, Cardboard, Leather, Phone case and other flat objects
Ink Color 4Color(C、M、Y、K) ; 5Color(C、M、Y、K、W)
Ink type UV ink. Solvent ink, Textile ink
Ink Supply System Continuous Ink Supply System
UV Curing System LED UV Lamp / Water cooling system
Rip software RiPrint, Maintop 6.0 standard/ Photoprint optional
Image format TIFF,JPEG,EPS,PDF etc
Voltage AC220V  50-60HZ
Power supply 1500W
Data interface 3.0 high speed USB interface
Operation System Microsoft Windows7/10
Operating environment Temperature: 20-35℃ ; Humidity: 60%-80%
Machine size 2750mm*1600mm*1600mm/500KG
Packing size 2980mm*2800mm*1680mm/600KG
Packing way Wooden package (plywood export standard)
