EPSON I3200-A1

EPSON I3200-A1

Short Description:

The Epson I3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for water-based inks.

Product Detail

Product Tags

Product Specifications

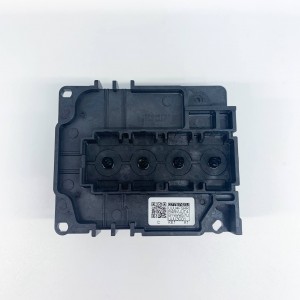

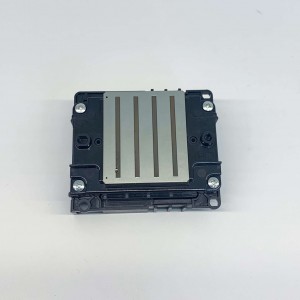

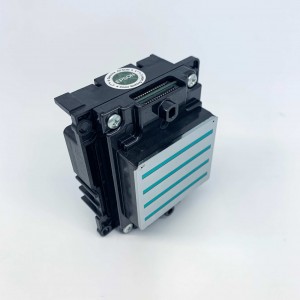

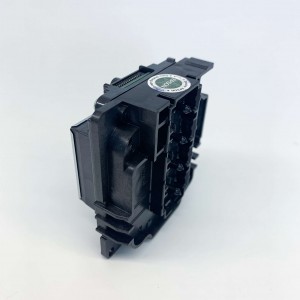

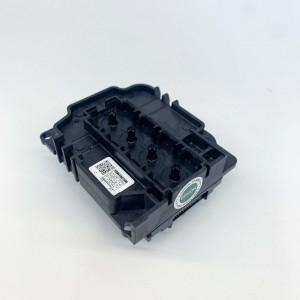

Product name: Epson I3200-A1 original Printhead
Type PrecisionCore MicroTFP printhead
Place of Origin Japan
Usage: Inkjet printing
Ink: Aqueous
Number of Nozzles 3200nozzles
Nozzle rows 8 rows
Nozzle resolution 300 npi/row 600 npi/2 rows
Max. number of colour inks : 4 colours
Effective print width 33.8 mm (1.33 inches)
Droplet ejection performance 3.8, 6, 12pl
Viscosity range 3-4 mPa·s
Dimensions 69.1mm x 59.5mm x 36.7mm
Weight 82g
Packaging Details 12X12X5 cm
Shipping: DHL/Fedex/TNT/UPS
Payment: TT/Paypal/Western Union

1. It is highly recommended to replace the head cables together with a new printhead.
2. The Printhead is required to be installed by professional persons.
3. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us or contact us 86-15957481803
4.Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
