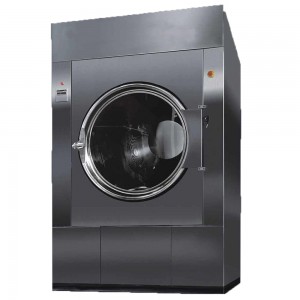

Industrial Socks Dryer

Industrial Socks Dryer

Short Description:

Industrial dryer machine. suitable for all kinds textile products, such as such as socks, bedding sheets, cloth etc.

The dyer fully steel constructure with large door design. convenient 180 of freedom to open the door and take out/take in materials.   adopt triangle belt transmission, smooth running. low noise. safe and reliable.

Different capcity can be selected according to your production needs.

Product Detail

Product Tags

Product Details

Dryer Main features
1. The large-caliber loading door, throw take clothing convenient and practical. And with transparent toughened glass, readily available to check clothes drying status
2. The dryer adopts advanced unique duct structure, which can effectively improve heat efficiency. Shorten the drying time. Energy saving.  Roller adopt positive negative design. Effectively preventing the big clothing (such as a sheet)  intertwist and corrugate.
3. The dryer using computer automatic control,  according to customer's needs and clothing feature. Drying temperature and time can be adjustable in automatic control.
4. The dryer cabinet style makes it's easy to be installed in narrow space. The inner tunnel is made of stainless. Make it more durable.
5. The plush collection of this machine adopts drawer style, which can be cleaned when pulled out. The whole machine is fully enclosed structure, which significantly reduces the heat loss compared with other similar products, effectively improves the environment of laundry room and reduces the comprehensive use cost
Model UP801-30 UP801-50 UP801-100 UP801-120
Capacity 30KG 50KG 100KG 120KG
Drum dimension Φ970*650 Φ1160*1000 Φ1320*1060 Φ1320*1100
Rotate speed(min) 32~35 30~33 30~33 29~31
Heating condition Steam   or  Electric Heating  (Customizable)
Voltage 380V/3PHASE  50~60HZ
Heating power (kw) 15 22 36 55
Motor Power (kw) 1.1 1.5 2.2 3
Fan Power (kw) 1.1 1.5 2.2 3
Inner/ Outer  materials 1.5mm mirror stainless steel, 1.5mm mirror spray              1.2mm 304 stainless steel/ 2mm cold steel
Dimension(mm) 1070*1400*1900 1330*1540*2010 1490*1660*2280 1570*2000*2400
Total Weight(kg) 460 660 660 1400
