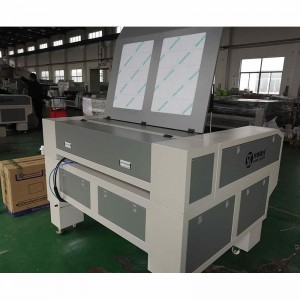

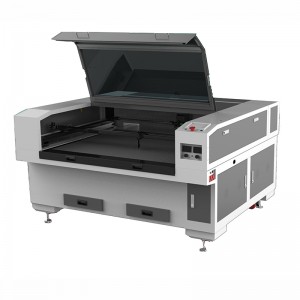

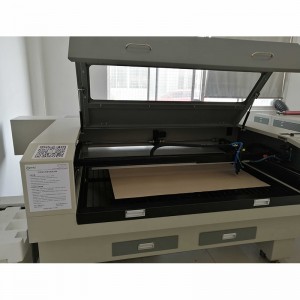

Laser Cutter 1018
Video
Machine parameter
Working Area | 1000mm*800mm | Working Table | Knife Blade |
Laser Type | Glass CO2 Laser Tube | Working Speed | 20-400 mm/s |
Laser Power | 100W | Power Supply Required | AC110V~220V±5% 50Hz/60Hz 1Phase |
Heads of Laser | Single Head | Format Supported | AIBMPPLTDXFDST |
Dimensions | 1610mm*1390mm*1120mm | Positioning Accuracy | ±0.1mm |
Net Weight | 380KG | Controller | Ruida software |
Motion System | Step Motor | Operating Temperature | Minus 10℃~45℃ |
Cooling System | 5000 Industrial Water Chiller | Operating Humidity | 5-95% |
Total Power | <1.5KW (Excluding exhauster) | Accessories | Water chiller, exhaust fan, air compressor, etc. |
Application | Acrylic, Wood, Leather, Paper etc. |
Advantages
LASER CUTTER ADVANTAGES:
1. Accurate and hot seal clean cutting edge
2. Cutting any shape or design
3. Zero cutting distance, at least 10% more material saved than CNC
Machine details
![machine details-1](http://www.uniprintcn.com/uploads/machine-details-1.jpg)
![machine details-2](http://www.uniprintcn.com/uploads/machine-details-2.jpg)
![machine details-4](http://www.uniprintcn.com/uploads/machine-details-4.jpeg)
![machine details-3](http://www.uniprintcn.com/uploads/machine-details-3.jpg)
Applicaitons
![application-1](http://www.uniprintcn.com/uploads/application-1.jpg)
![application-2](http://www.uniprintcn.com/uploads/application-2.jpg)
Production
![production-1](http://www.uniprintcn.com/uploads/production-1.jpg)
![production-2](http://www.uniprintcn.com/uploads/production-2.jpg)
Production Flow
![production flow](http://www.uniprintcn.com/uploads/production-flow.jpeg)
Production Flow
![workshop](http://www.uniprintcn.com/uploads/workshop.jpeg)
