Sublimation Printer Up1802

Sublimation Printer Up1802

Short Description:

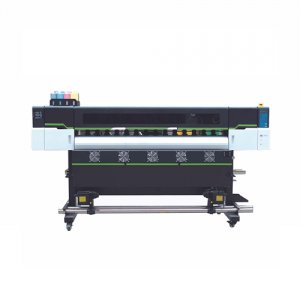

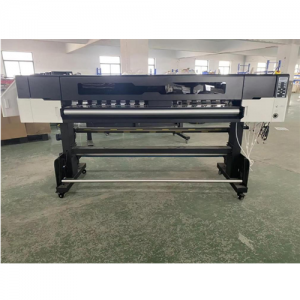

UniPrint UP 1800-2 is another variant of a sublimation printer. It supports 2 print heads and can achieve a printing speed of 40㎡/h  (4 Pass). The maximum printing width you can achieve using this printer is 1800mm. You also get an excellent print resolution of 1440x2880dpi.

Product Detail

Product Tags


Model UP 1800-2

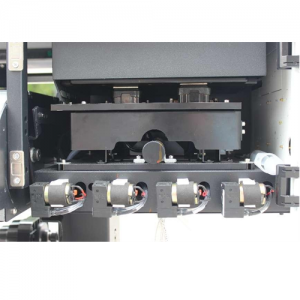

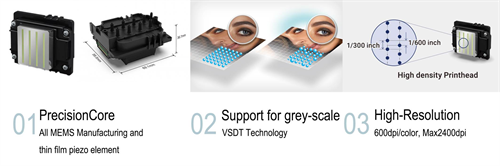

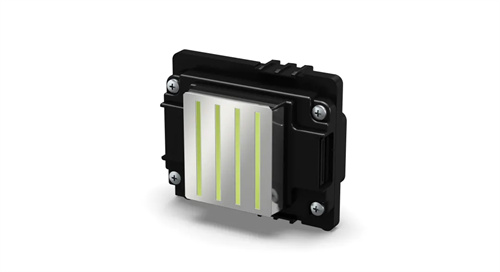

Print head Head type EPSON I3200-A1
Head qty 2PCS
Resolution 720*1200dpi;720*2400dpi
Automatic cleaning, automatic flash spray moisturizing function
Printing speed 4pass 40㎡/h
6pass 30㎡/h

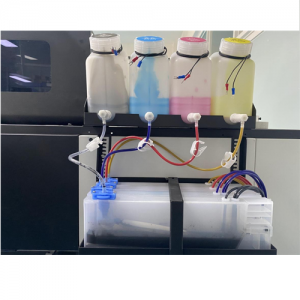

Printing ink Colors C M Y K
Max load 3000ML/color
Ink type Sublimation Ink

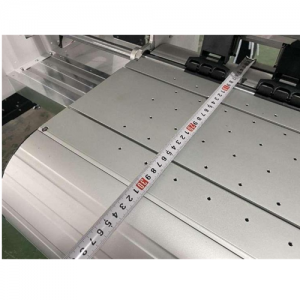

Printing Width 1800mm
Printing Media Sublimation paper

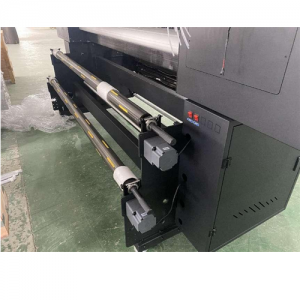

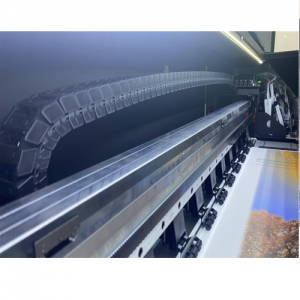

Media transfer  Cots transmission/automatic tension retracting system

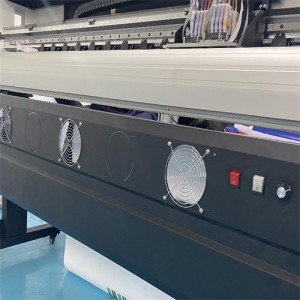

Drying External intelligent Infrared heating and hot air fans integrated dryer
Moisturizing mode Fully sealed automatic moisturizing and cleaning
RIP Software Support Maintop6.1, PhotoPrint19,   Default  Maintop6.1
Image format JPG,TIF,PDF etc
Computer configuration The operating system Win7 64bit / Win10 64bit
Hardware requirements Hard disk: more than 500G (solid-state disk recommended), 8G operating memory, GRAPHICS card: ATI display 4G memory, CPU: I7 processor
Transport interface LAN

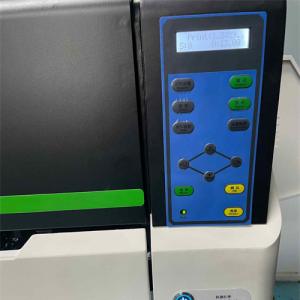

Control  display LCD display and computer software panel operation
The standard configuration Intelligent drying system, liquid level alarm system
The work environment Humidity:35%~65%  Temperature:18~30℃
The power demand Voltage AC 210-220V   50/60 HZ
Printing system 200W standby, 1000W working
Drying system 4000W
Size Machine size 3025*824*1476MM/250KG
Packing size 3100*760*850MM/300KG
