Short Description:

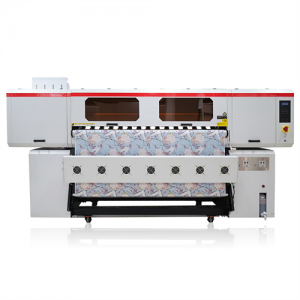

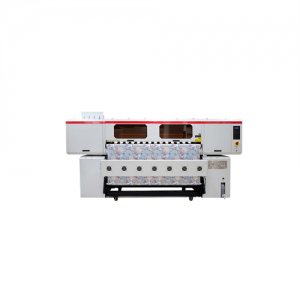

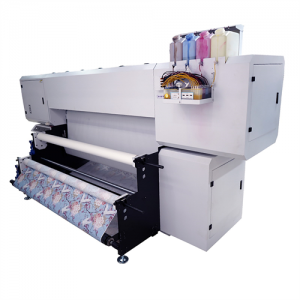

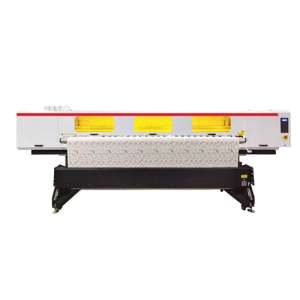

Featuring 8 pieces of print heads, the UniPrint UP 1800-8 sublimation printer gives you a maximum printing speed of 320㎡/h with 1 pass and 160㎡/h with 2 passes. The printer is designed to give you top-notch sublimation printing as it has an integrated dryer and intelligent infrared heating for quick drying



Product Detail

Product Tags


Model UP 1800-8
Head type EPSON I3200-A1
Head qty 8PCS
Resolution 1440*2880dpi
Technique On-demand piezoelectric jet inkjet technology,Automatic cleaning, automatic flash spray moisturizing function
Printing speed 1pass: 320㎡/h; 2pass: 160㎡/h
Colors C M Y K
Max ink load 4L/color
Ink type Sublimation Ink
Printing Width 1800mm
Printing Media Sublimation paper
Max Feeding 35cm Diameter roll/150kg
Media transfer  Cots transmission/automatic tension retracting system
Drying External intelligent Infrared heating and hot air fans integrated dryer
Moisturizing mode Fully sealed automatic moisturizing and cleaning
RIP Software Support Maintop6.0、PhotoPrint、 Print factory etc.   Default  Maintop6.0
Image format JPG,TIF,PDF etc
The PC operating system Win7 64bit / Win10 64bit
Hardware requirements Hard disk: more than 500G (solid-state disk recommended), 8G operating memory, GRAPHICS card: ATI display 4G memory, CPU: I7 processor
Transport interface High speed USB 3.0
Control  display LCD display and computer software panel operation
The standard configuration Intelligent drying system, liquid level alarm system
The work environment Humidity:35%~65%  Temperature:18~30℃
Voltage AC 210-220V   50/60 HZ
Printing system 200W standby, 1300W working
Drying system 7000~8000W
Machine size 3516*1650*1850MM/450KG
Packing size 3762*1526*1881MM/550KG

Machine Advantages

Original Epson head
Original EPSON i3200-A1 printhead  8pcs with automatic cleaning and moisturizing device
Imported guide rail
equipped with imported HIWIN anti-noise guide rail and high quality pinch roller.
Automatic tension release system
Automatic tension release system can effectively prevent the sublimation paper wrinle and collect the paper more than 15000m
Industrial pneumatic shaft
Control the material through deflation and gas-filled, then tighten the paper tube
Intelligent infrared heating device
Control the temperature and protect the material during the printing process

Machine Details

sublimation printer UP1808 -aluminum CAPPING
back roll up-2
sublimation printer UP1808 -emergency stop key
sublimation printer UP1808 -pinch roller
sublimation printer UP1808 -platform
sublimation printer UP1808 -roller up
sublimation printer UP1808 -drying
intelligent dryer control
