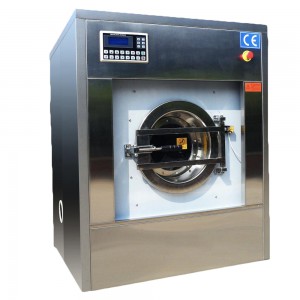

Industrial Auto Integrated Dewater+Washing Machine

Industrial Auto Integrated Dewater+Washing Machine

Short Description:

Industrial Auto Integrated Dewater+Washing Machine can be applied to textle products. such as socks, bedding sheets, cloth etc.

Different capcity can be selected according to your production needs.

Automatic washing machine with ful computer LCD dialogue interface. large display screen.  there’re 30 different washing procedures options. can meet the requirments of any washing, pre-washing, sterilizing, rinsing, bleaching and exacting can be finished automatically.


Product Detail

Product Tags

Product Details

The main features of the Integrated  Dewatering and washing machine
1. Adopts programmable microcomputer automatic control touch type, with high automation degree, stability and good seismic performance.
2, using cylinder body full suspension structure vibration absorber, from the original hard impact design to hydraulic buffer and spring combined vibration absorber structure, so that the machine can also achieve the ideal vibration absorber in the high-rise building work.
3, The washing machine adopts the gallbladder type, single door structure, loading and discharging is very convenient, reduce the labor intensity of the staff, increase the cleaning efficiency.
4, The machine is fully enclosed, after the drainage closed structure. The inner liner and outer shell are made of stainless steel, strong corrosion resistance.
Note: due to the constant upgrading of equipment, the product parameters and appearance in this document are for reference, if there is any change, the actual product shall prevail.
Item INDUSTRIAL SOCKS AUTO Integrated DEWATER+WASHER MACHINE
Model UP XGQ-20H UP XGQ-30H UP XGQ-50H UP XGQ-70H UP XGQ-100H UP XGQ-150H
Rated Capacity(kg) 20 30 50 70 100 150
Drum Diameter(mm) Φ650 Φ800 Φ970 Φ1200 Φ1200 Φ1400
Diameter depth(mm) 450 400 650 630 840 920
Washing(rpm) 42 40 40 35 35 30
Low/high extraction(rpm) 800 770 740 670 670 610
Heating condition Steam   or  Electric Heating  (Customizable)
Voltage 380V/3PHASE  50~60HZ
Motor Power (kw) 3kw 4kw 4kw 5.5kw 7.5kw 15kw
Steam pipe(inch) G1/2” G3/4” G1” G1” G1” G1.5”
Steam pressure(Mpa) 0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6
Cool/hot water pipe(inch) G3/4” G1” G1.5” G1.5” G1.5” G2”
Tap water pressure(Mpa) 0.2~0.4 0.2~0.4 0.2~0.4 0.2~0.4 0.2~0.4 0.2~0.4
Drainage(mm) 60 80 90 127 127 127
Work pressured compressor(Mpa) 0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6
Noise dB(A) ≤78 ≤78 ≤78 ≤78 ≤78 ≤78
Dimension(mm) 1020*1020*1500 1150*1100*1600 1550*1500*1780 1700*1800*1900 1720*1855*2000 2100*2100*2500
Total Weight(kg) 650 800 1900 2300 2800 3500
