Short Description:

Dye sublimation printing onto large format textiles is now very popular for producing sportswear, flags and banners, due to the printers becoming faster and more cost effective. The only issue remaining is how to cut out the printed parts. Manually cutting is too slow, inconsistent and labour intensive.
UniPrint Big visual laser cutting machine automates the process of cutting out dye sublimation printed pieces of fabric or textile both quickly and accurately, automatically compensating for any distortions or stretches that occur in unstable or stretchy textiles – exactly the type of fabrics that are used in sportswear.


Product Detail

Product Tags

Specification

Working Area 1800mm*1200mm Controller Trocen
Laser Type Glass CO2 Laser Tube Working Speed 300-600 mm/s
Laser Power 130W Power Supply Required AC110V~220V±5% 50Hz/60Hz 1Phase
Heads of Laser Double Heads with Double Arms Format Supported AIBMPPLTDXFDST
Dimensions 2420mm*2230mm*2730mm Positioning Accuracy ±0.1mm
Net Weight 950KG Controller Ruida software
Motion System Step Motor Operating Temperature Minus 10℃~45℃
Cooling System 5200 Industrial Water Chiller Operating Humidity 5-95%
Total Power <2.5KW (Excluding exhauster) Accessories Water chiller, exhaust fan, air compressor, etc.
Application Textile fabrics, PU leather

Machine advantages

1. 7 cutting workers replaced

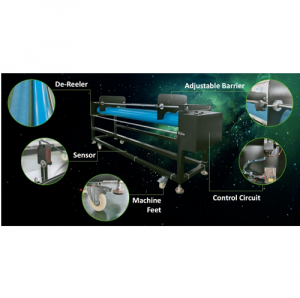

2. Automatic material feeding
3. Automatic vision recognition software
4. Zero cut design setup time
5. Perfect Distorted patterns cutting
6. Cutting Any type of Textile
7. Hot seal No fraying cutting edge

Cutting Process

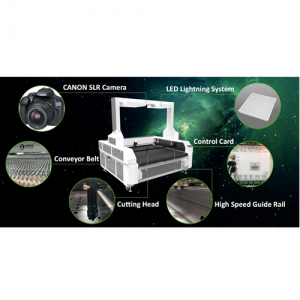

Machine details

machine details-2
machine details-3

machine-details-41

Applicaitons

application

Production

production-2
production-1

Production Flow

production-flow1

Workshop

workshop1
